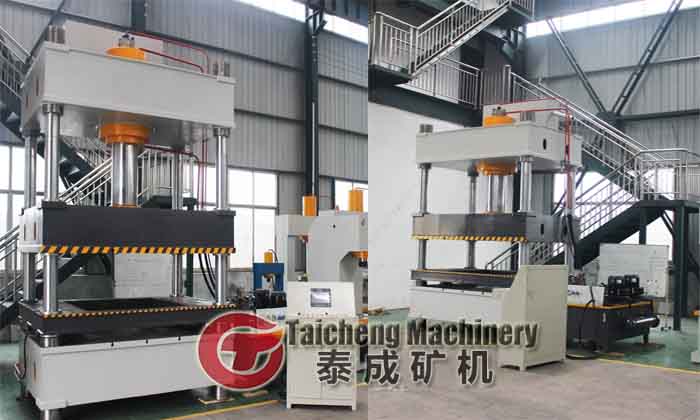

Hydraulic press machine for deep drawing is a universal hydraulic press, used for metal tensile,punching,rummaged,cold extrusion and other stamping process
can also be used for correction ,press-fit.pressed powder products and plastic molding products and Composite material molding.
Application

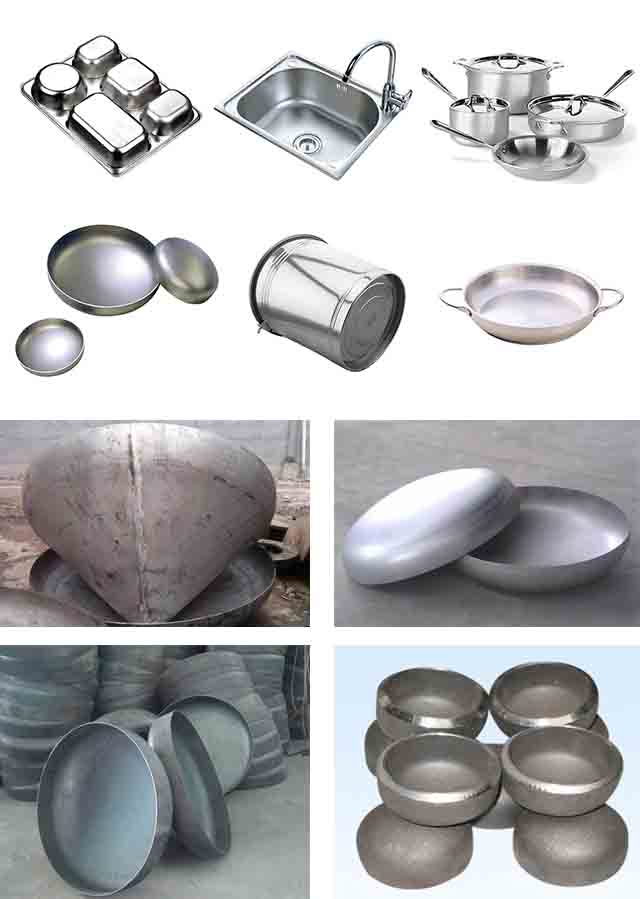

1) Hydraulic cold press machine with function of Deep drawing and molding for auto parts, household appliance parts and kitchenware, etc.
2) Especially suitable for stretching and molding of special-shaped products.
3) Stamping, deep drawing, bending, forming and other pressing process for metal and nonmetal parts.

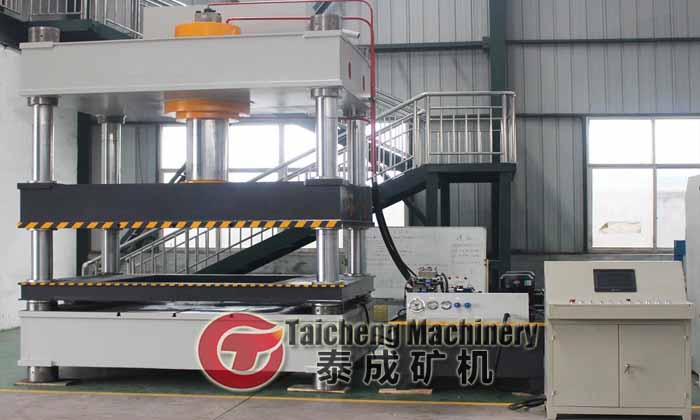

Features

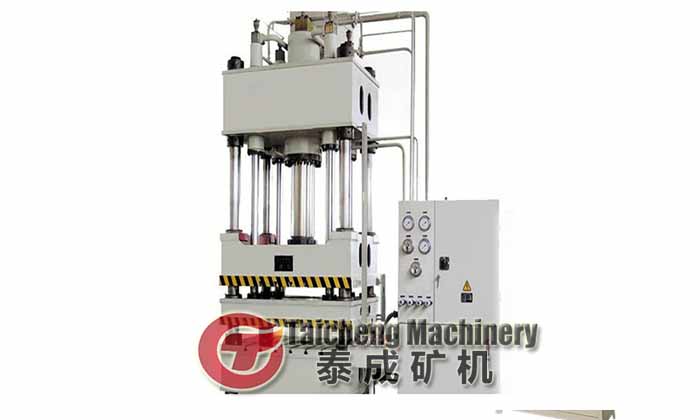

1. Three beam four-column structures, after the computer optimized design, economic, and apply.
2. Hydraulic control system uses an integrated cartridge valve systems and reliability, long life.
3. Hydraulic shock is small, reduces piping and leak-point links.
4. Stand-alone electrical control system which is reliable, intuitive motion, easy for maintenance.
5. Centralized control design, two kinds of mode of operation for choose.
6. Setting process can be realized easily.
7. Working pressure, stroke according to the technical needs within the limits prescribed adjustable.

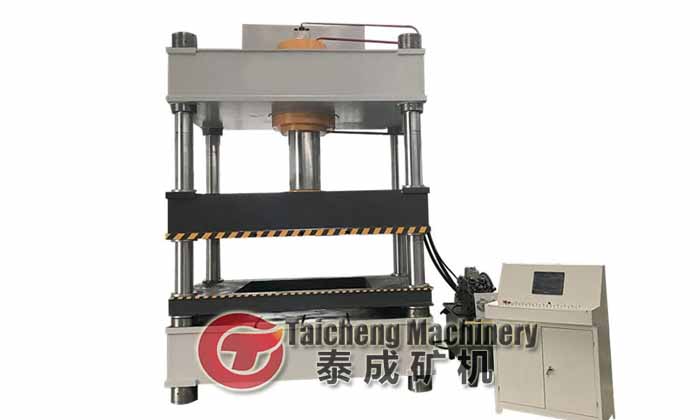

Technical parameter
|
Parameters |
Unit |
TCHD-200A |
TCHD-200B |
TCHD-315A |
TCHD-315B |
TCHD-400 |
TCHD-640 |
|
Nominal force |
KN |
2000 |
2000 |
3150 |
3150 |
4000 |
6300 |
|
Hydraulic system Max.pressure |
Mpa |
25 |
25 |
25 |
25 |
25 |
25 |
|
Max.Opening height(Customized) |
mm |
900 |
900 |
1250 |
1250 |
1250 |
1500 |
|
Slider Effective Stroke |
mm |
600 |
600 |
600 |
800 |
800 |
900 |
|
Worktable size |
mm |
800*800 |
1000*1000 |
1000*1100 |
1260*1160 |
1260*1160 |
1400*1400 |
|
Nominal force of upper ejection cylinder |
KN |
400 |
400 |
630 |
630 |
630 |
1000 |
|
Stroke of upper ejection cylinder |
mm |
220 |
220 |
300 |
300 |
300 |
300 |
|
Slider descending speed |
mm/s |
100 |
100 |
120 |
120 |
120 |
150 |
|
Slider pressing speed |
mm/s |
5-10 |
5-10 |
8-15 |
8-15 |
8-15 |
10-22 |
|
Slider return speed |
mm/s |
90 |
90 |
90 |
90 |
900 |
12 |
Any change of technical data shall not be advised additionally.
