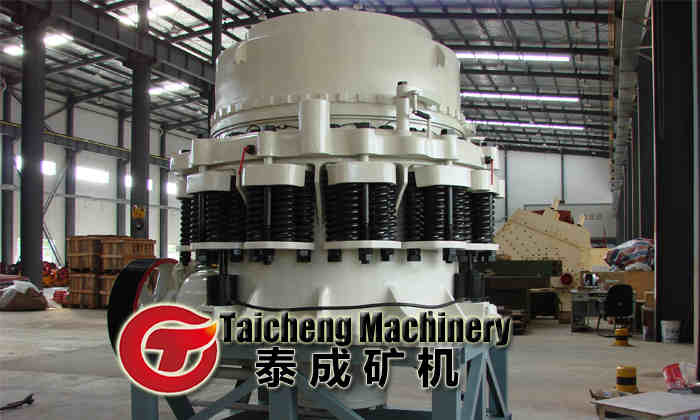

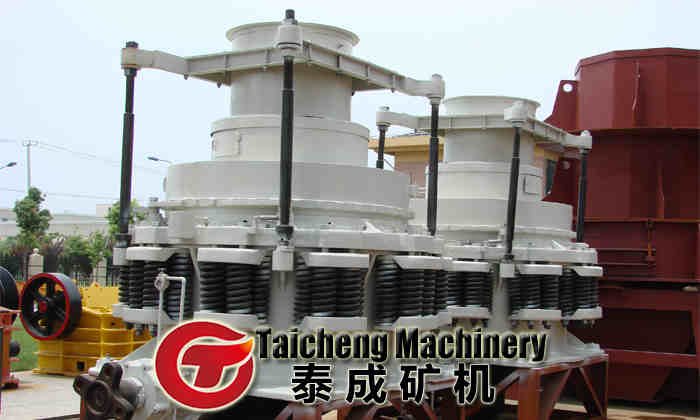

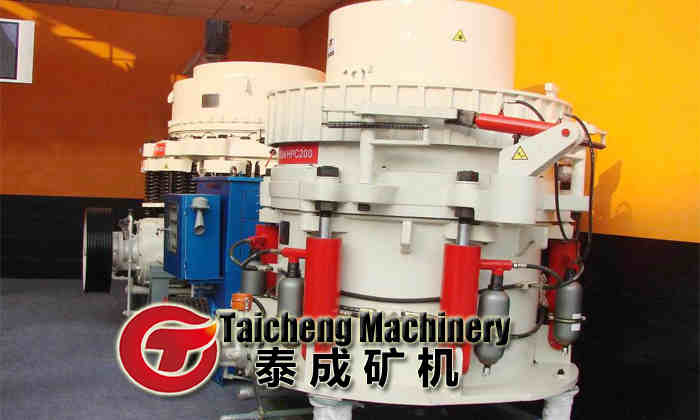

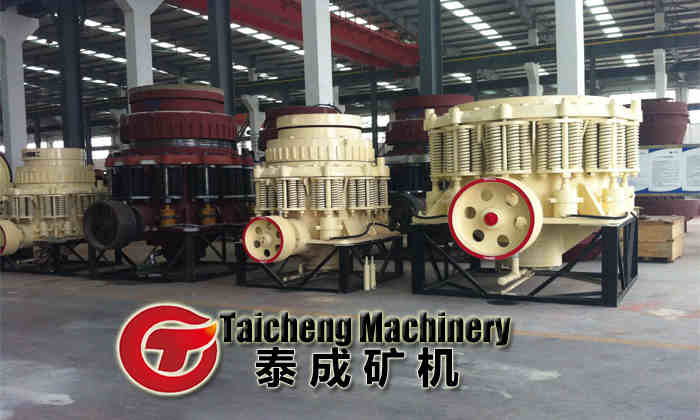

Cone crusher

Application:stone sand marblegraniteQuartziteDolomitePebble....
Max. Feeding Size300MM


Cone crusher is widely used in mining, metallurgy, construction, road building industry, chemical and silicate industry, suitable for crushing hard and medium hard ore and rock, such as iron ore, limestone, copper ore, quartz, granite , sandstone, etc.

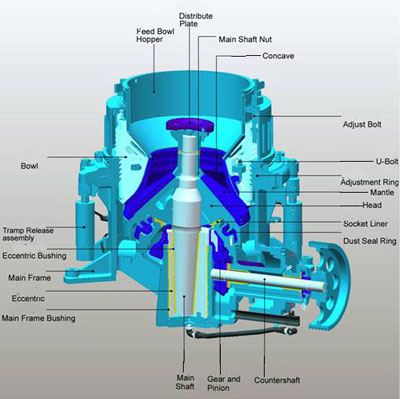

Working Principle:

When working the rotation of the motor through pulley or coupling, drive shaft and the conical portion of the eccentric force moving around the circle next to a fixed point for rotating pendulum movement, so that the cone crusher crushing wall sometimes near and sometimes off the solid adjustment sleeve mounted on rolling acetabular wall surface, the ore in the crushing cavity constantly under attack, pressing and bending and crushing ore.

Bevel gear drive motor through eccentric rotation, so crushing cone make swing movement. crushing cone sometimes close and sometimes away from the fixed cone, to complete the crushing and nesting. Support sleeve and frame body connection is pressed by spring, when the piece of metal and other objects which can not be broken fall within the crusher , compressive deformation of the spring discharge foreign objects, to achieve safety and prevent damage to the machine.



1, high production capacity, better quality;
2, reduce downtime;
3, easy maintenance and low repair;
4, It can provide the best solution for coarse crushing, fine crushing and super fine crushing operations.

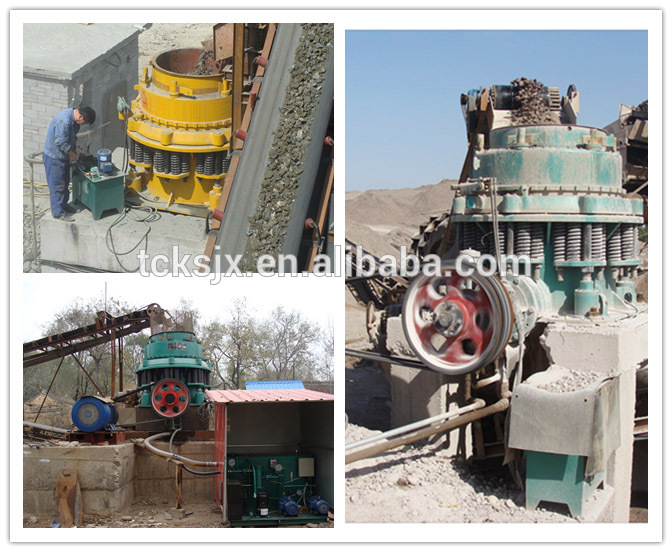

Cone Crusher Can be used in crushing various ore and stone,such as iron ore,copper ore,gold ore,Marble,pebbles,bluestone crushing plant.Also it can crush Limestone,Cement,road material....



Technical Parameter:

Type Diam-eter of crush-ing cone(mm) Max. feeding size(mm) Width of discharge opening(mm) Processing capacity(t/h) Motor power(kw) Dimensions(L*W*H) (mm)
PYB 600 600 65 12-25 40 30 2234×1370×1675
PYD 35 3-13 12-13 2234×1370×1675
PYB 900 900 115 15-50 50-90 55 2692×1640×2350
PYZ 60 5-20 20-65 2692×1640×2350
PYD 50 3-13 15-50 2692×1640×2350
PYB 1200 1200 145 20-50 110-168 110 2790×1878×2844
PYZ 100 8-25 42-135 2790×1878×2844
PYD 50 3-15 18-105 2790×1878×2844
PYB 1750 1750 215 25-50 280-480 160 3910×2894×3809
PYZ 185 10-30 115-320 3910×2894×3809
PYD 85 5-13 75-230 3910×2894×3809
PYB 2200 2200 300 30-60 59-1000 280-260 4622×3302×4470
PYZ 230 10-30 200-580 4622×3302×4470
PYD 100 5-15 120-340 4622×3302×4470

Any change of technical data shall not be advised additionally.
