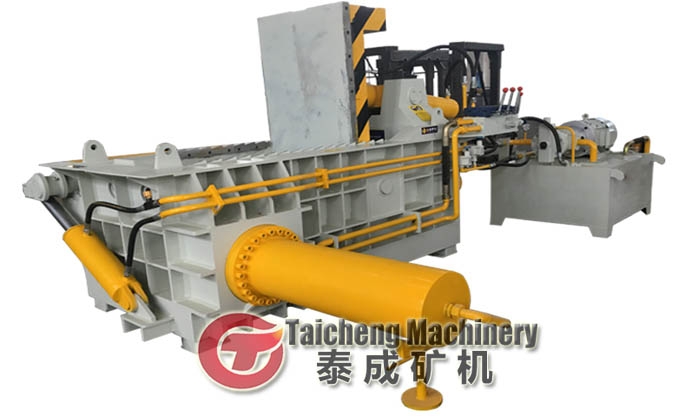

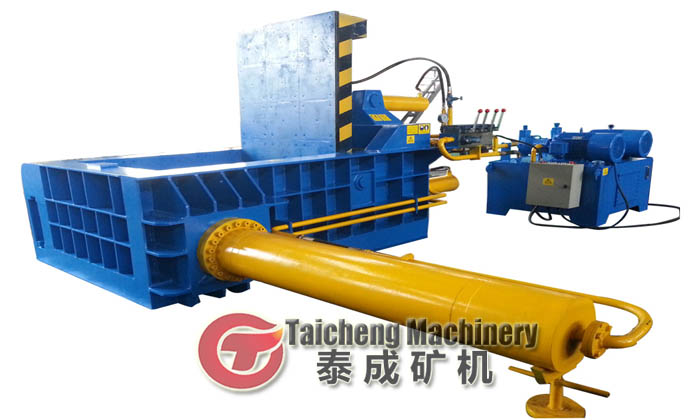

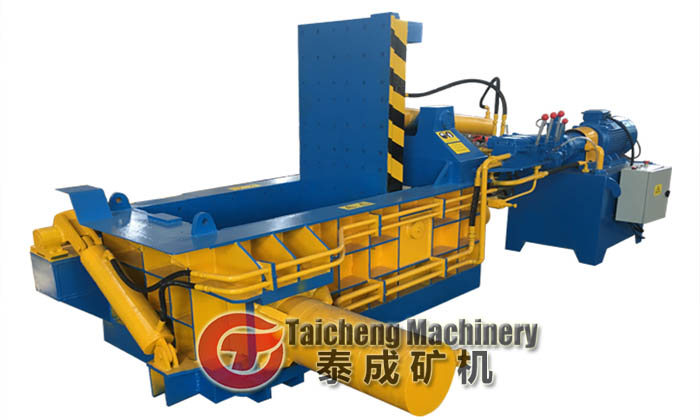

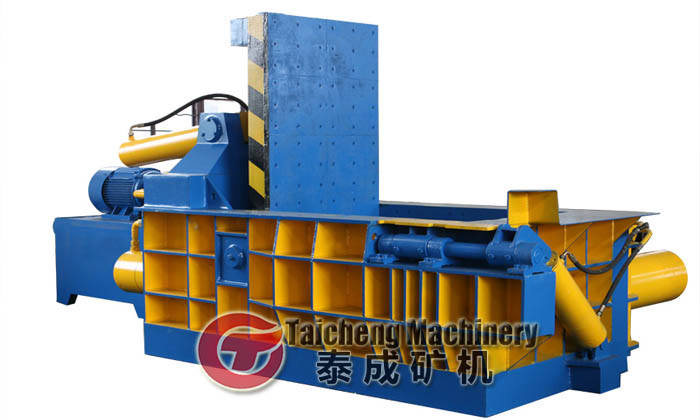

metal Baler/Baling machine

Use for: Scrap metal. Aluminium steel turnings Wire scrap car and big scrap.
Final briquette size:300*300mm; 400*400mm; 500*500mm; 600*600mm; 700*700mm; It can Customized as you need.

Email: info@tcksjx.com

Whatsapp/Wechat/Mobile:+8613783554319

Chat Now Leave Message

Hydraulic Metal Baler used to crush, cut and bale a wide range of scrap metal. They could deal efficiently and quickly with metals scraps, whether it’s something as small as Cans,Aluminium and steel turnings and Wire scrap, or as large and robust as steel sheet, washing machines, other white goods and whole vehicles. Choose a hydraulic metal baler metal benefit from a reliable and fit-for-purpose solution for your recycling needs.

Hydraulic scrap metal baler press the leftover of all kinds of metal material, including steel shavings, scrap tel, scrap aluminum,scrap copper,scrap stainless steel to be qualified in the shape of cuboid,octagon,cylinder and so on, which increases the speed of casting and reduce the costs of transportation and smelting.

Features:

1, Stable and efficient hydraulic driving system, manual handle or PLC full automatic operation optional

2, various bale ejection methods optional, turning over, side pushing out, front pushing out, manual discharging etc.

3, various models for the custom needs: different press forces, box sizes, bale shapes

4.The chamber box size and bale size can be customized as per material size,two sides of feeding chamber fixing blades is an optional.

5. Designed with quick unit that can improve work efficiency substantially;

6. Famous motor, hydraulic system, oil cylinder, piston pump, electrical components;

Technical Parameters

Model	Nominal Force (KN)	Bale size (mm)	Chamber size (mm)	Capacity (KG/H)	Power(kw)
TCBP-125A	1250	300*300	1200700600	1200-1800	15
TCBP-135A	1350	350*350	1400900700	1800-2200	22
TCBP-160	1600	350*350	1400900800	2000-2800	22
TCBP-160A	1600	400*400	16001000800	2000-3500	22
TCBP-160B	1600	400*400	16001200800	2200-4000	30
TCBP-200A	2000	450*450	16001200800	2500-4500	30-37
TCBP-250A	2500	500*500	18001200900	4000-6000	44-60
TCBP-250B	2500	500*500	20001400900	5000-6300	44-60
TCBP-315A	3150	500*500	200014001200	5000-6500	60-74
TCBP-315B	3150	600*600	200017501200	5000-7000	60-74
TCBP-315C	3150	600*600	250020001200	6000-7500	74
TCBP-400A	4000	600*600	250020001200	7500-9000	90
TCBP-400B	4000	700*700	300020001300	8000-10000	90
TCBP-400C	4000	700*700	300025001300	9000-12000	135

Any change of technical data shall not be advised additionally.
