Introduction

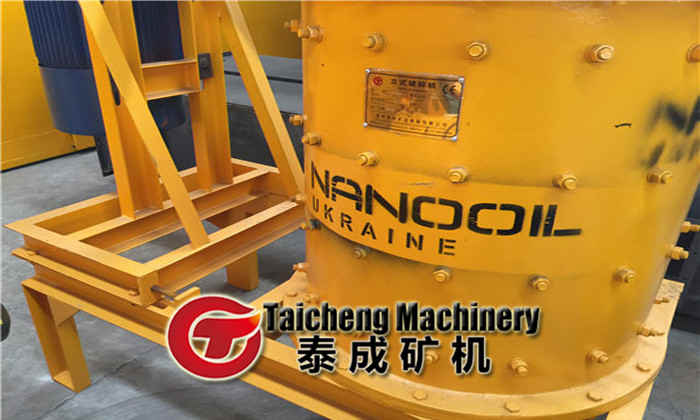

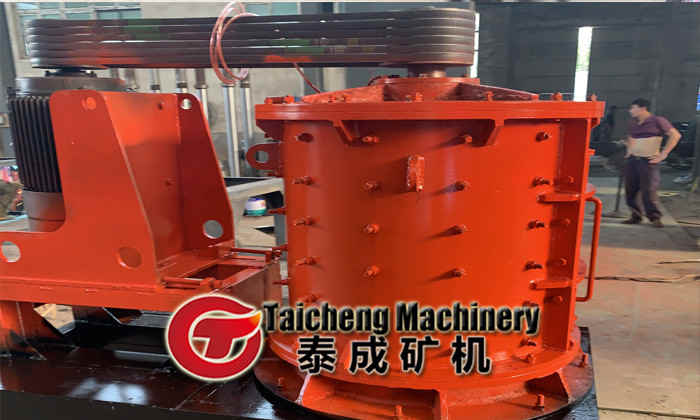

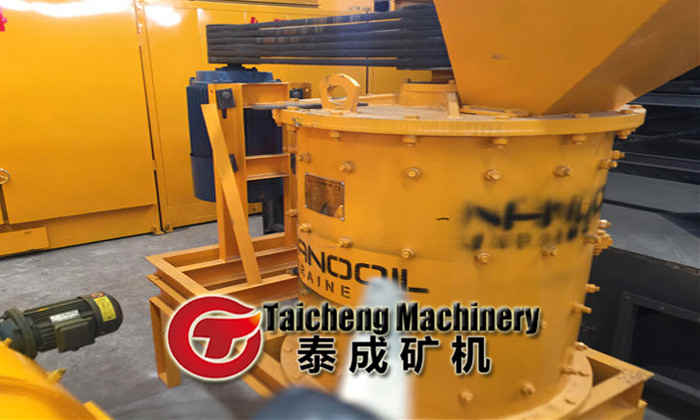

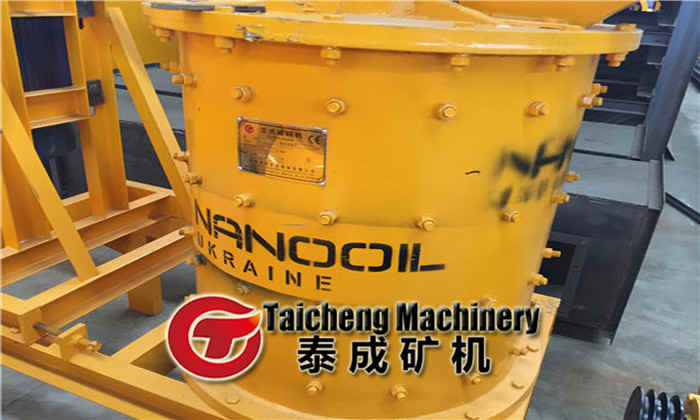

Our compound crusher are ideally suitable for primary and secondary crushing, with low power consumption and easy maintenance. Every feature of these machines has been carefully designed to provide superior quality and performance.
They are widely used for crushing various materials like stone, granite, trap rock, coke, coal, manganese ore, iron ore, emery, fused aluminum, oxide, fused calcium carbide, lime stone, quartzite, alloys, etc. These crushers are recommended by leading consultants in this field and are used by hundreds of customers all over the world.
Features:
(1) Simple and reasonable structure, low running costs. The use of stone at stone principle, wear small.
(2) High crushing efficiency, energy saving.
(3) Fine crushing, coarse grinding.
(4) Little affected by the moisture content, the moisture content of up to about 8%.
(5) Working noise below 75 decibels (db level), less dust pollution.
(6) suitable for crushing medium-hard, extra-hard materials.
(7) final product is cube, of bulk density and low iron pollution.
(8) Since the impeller lining wear, easy maintenance.
Technical Parameter:
|
Model |
800 |
1000 |
1250 |
1500 |
1750 |
|
Rotor diameter(mm) |
650 |
800 |
1000 |
1250 |
1560 |
|
Cylinder height(mm) |
800 |
850 |
850 |
1000 |
1410 |
|
Main shaft Rotation speed(Rotation/min) |
1350 |
970 |
740 |
650 |
600 |
|
Feeding size(mm) |
50 |
70 |
100 |
100 |
100 |
|
Discharging size(mm) |
0-5 |
0-5 |
0-5 |
0-5 |
0-5 |
|
Processing capacity(t/h) |
5-15 |
10-30 |
20-60 |
30-80 |
40-100 |
|
Motor |
Power(kw) |
30 |
55 |
75 |
110 |
132 |
|
Rotation speed |
1440 |
1440 |
750 |
750 |
750 |
|
Dimensions(L*W*H) |
2200×860×1980 |
2700×1160×2000 |
2800×1400×2730 |
3100×1900×2300 |
3350×2100×2800 |
|
Weight(t) |
2.3 |
4.5 |
9.73 |
18.1 |
26.61 |
Any change of technical data shall not be advised additionally.
