We have two type sand washing machine . one type is Bucket sand washing machine ,Another type is screw sand washing machine

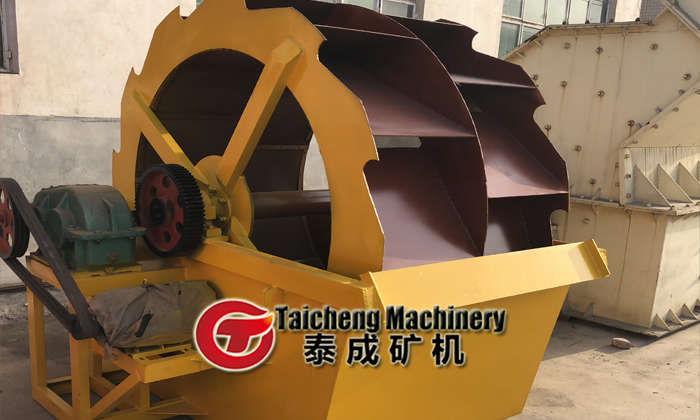

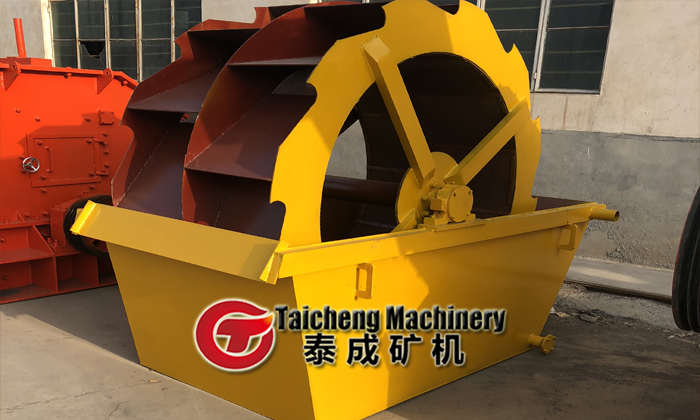

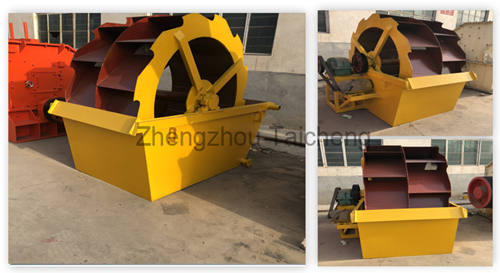

Bucket sand washing machine

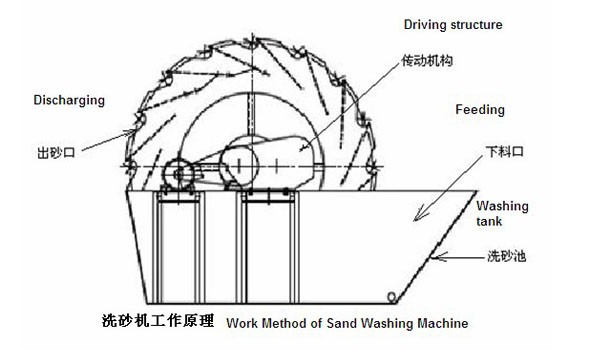

Bucket sand washing machine equipment drives the impeller in the water groove to move like a circle transmitted by electric motor and decelerator, and then mixes, overturns, cleans and discharges the sand or slag pellets in the water groove.
Technical
|
Model |
Capacity(t/h) |
Power(kw) |
|
TCXD2000 |
8-40 |
4 |
|
TCXD2600 |
20-100 |
5.5 |
|
TCXD2800 |
30-150 |
7.5 |
|
TCXD3200 |
100-200 |
11 |
|
TCXD3600 |
130-300 |
15 |
Any change of technical data shall not be advised additionally.

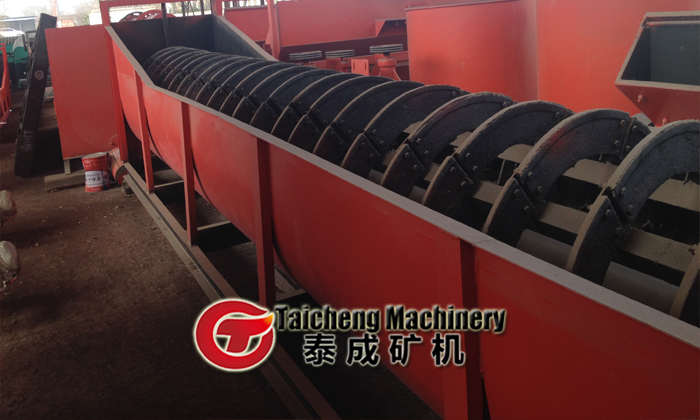

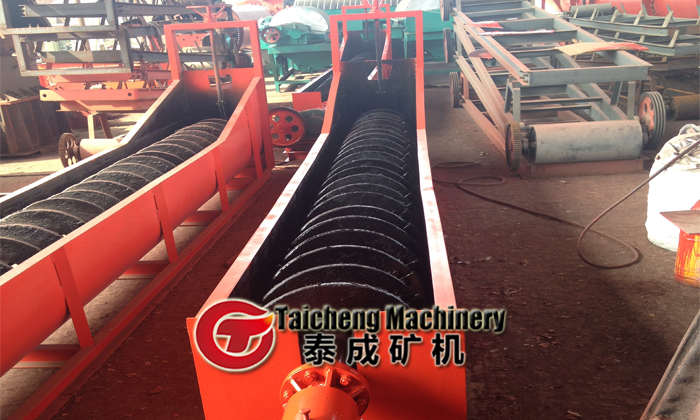

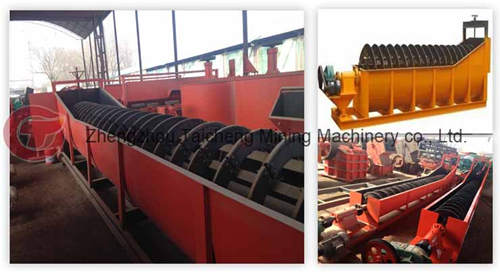

Screw sand washing machine
Application
The screw sand washer machine is a efficient sand washing equipment adopting wheel-like structure, sand washer works with sand making machine in the sand making plant.sand washer can wash the stone powder and impurity from the mixed sand that made by sand making machine,which can improve the sand quality. Sand washer is widely used in washing, grading and dehydrating in the industry of stone factories, construction site and quartz sand in glass factory.
sand washing machine is widely used for sand washing, separating, and cleaning in the construction of high speed road, high speed railway, hydroelectric project, Mineral Ore such as : gold ore , iron ore , copper ore ect. Gravel,Crushed Rock,Recycled Material,different types of Sand and Clay , such as Silica Sand ect ,public works and so on.
Features
1. High efficiency, reasonable structure, high capacity and low consumption
2. The bearing device of impeller drive is separated from water and materials in water, which greatly protects the bearing from soaking, sand and pollutants.
3. Compared with the spiral sand washing machine, the loss of medium and fine sand and powder is minimized, and the nd fineness can meet the required standard
4. Sand Washing machine is with long service life and low maintenance costs.
Working Principle
The material pours in the from the end of input,the spiral impeller rotates by the driven of the motor and the reducer,and then push the material inside the hopper close to the end of output.Thus,under the action of being advanced,mixed and the flushing water,the mud wrapped on the material and the impurity go separately.Finally,the separated fine sands are discharged from the discharging port under the advancing movement of the spiral.Thus,the continuous work of washing sand is finished again and again.Promptly carries off the impurity and the small proportion foreign matters,and discharge from the overflow port tank washer,completes the cleaning action.The clean sand and crushed stone is carried off by the leaf blade,and ids finally poured into the discharge chute from the revolving impeller,completes the cleaning action.
Technical
|
Model |
Capacity(t/h) |
Power(kw) |
|
TCXS0706 |
13-30 |
7.5 |
|
TCXS1075 |
30-50 |
11 |
|
TCXS1275 |
50-80 |
15 |
|
TCXS1575 |
80-120 |
22 |
|
2TCXS1500 |
60-80 |
7.5*2 |
|
2TCXS2000 |
80-150 |
11*2 |
|
2TCXS2400 |
150-220 |
15*2 |
|
2TCXS3000 |
200-300 |
22*2 |
Any change of technical data shall not be advised additionally.
