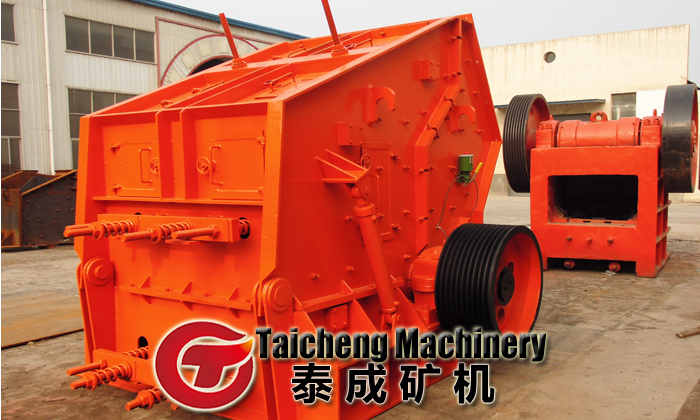

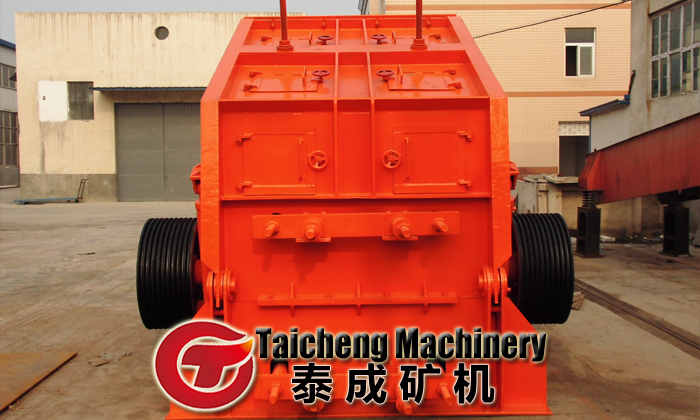

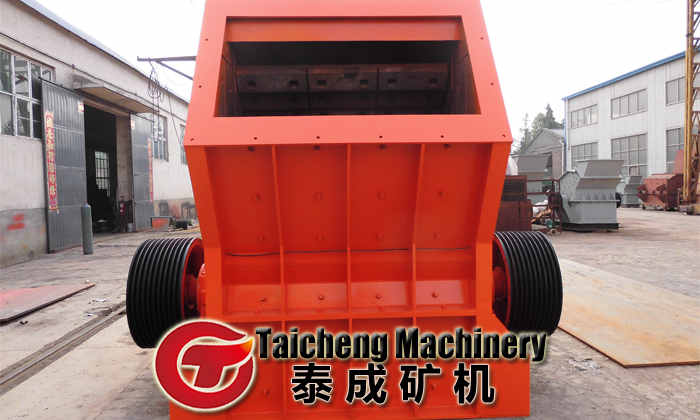

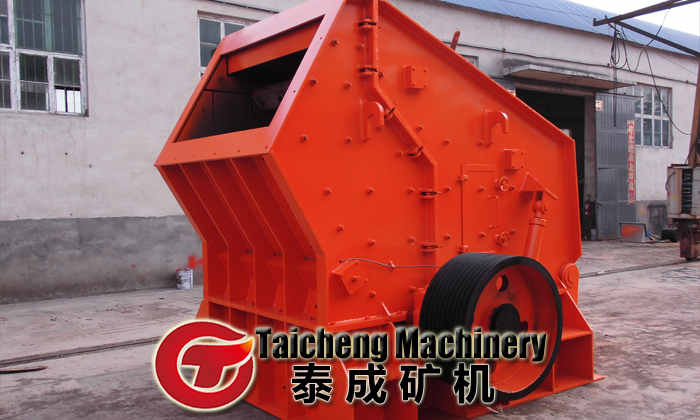

Introduction

We adapt the latest manufacturing technology and the unique structural design. The finished stone product is cube and has no tension or cracks. The grain shape is quite good. Impact crusher can handle each kind of coarse, medium and fine materials ores, rocks (granite, limestone, concrete, etc.), which particle size is not more than 120-500 mm and compressive strength is below 320 MPa.

Impact crusher is widely used in water and electricity, highway, artificial aggregate, crushing and other industries. This series of impact crusher has unique structure.It's equipped with high chrome hammer.Its unique counterattack lining is suitable for hard rock crushing and energy efficient. Nesting particle size can be adjusted to simplified crushing process. This crusher has large crushing ratio, high crushing efficiency, cubic shape and optional broken, etc. .

Application:

Impact Crusher Can be used in crushing various ore,such as iron ore,copper ore,gold ore,Marble,pebbles,bluestone crushing plant.

``



Structure

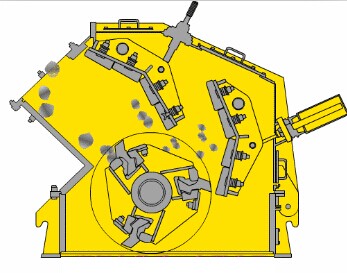

Impact crusher uses impact energy to crush materials. When impact crusher works, it's driven by the electric motor. The rotor has high-speed rotation. while the materials go into the plate hammer area, and impact the plate hammer on the rotor, then is thrown back again to the counter device to break. then from the back liner bounced back to the blow bar again broken,material is sent into one, two, three and impact chamber repeated broken until the material is crushed to the desired particle size then discharge from the outlet port. Adjust the gap between the rotor and frame to change the material shape and particle size.



 ``

Features

1, Multiple chamber can make it evenly and suitable for crushing hard rock.;
2, Large low feed port makes it easy to layout production line and increase the feed size;
3, New wear-resistant material of the plate hammer, impact plate and liner can last longer life;
4, High chrome hammer and unique counterattack lining board are particularly suitable for crushing hard rock and energy efficient;
5,The entire plate hammer structure makes the materials particle size more smaller and cube-shaped;
6,It uses fully hydraulic system, so it is easy and more convenient for maintenance and replacement of worn parts.

 ``

Technical Parameter:



Model Feed Opening(mm) Capacity (t/h) Max. Feeding Size(mm) Motor(kw)
PF-1007 400×730 30-70 300 45
PF-1010 400×1080 50-90 350 55
PF-1210 400×1080 70-130 350 110
PF-1214 400×1430 100-180 350 132
PF-1315 860×1520 130-250 500 220
PF-1520 830×2040 300-550 700 440

Any change of technical data shall not be advised additionally.

Impact crusher In Crushing Plant

1,Primary Crushing line:

The big stones in the stone production line are coarsely crushed in the jaw crusher sent by the vibrating feeders through the bunker evenly. The coarsely crushed stones are sent to the impact crusher by the belt conveyor for further crushing.



2,Screening Plant:

After tertiary crushing, the materials are screened in the vibrating screen through the belt conveyor to classify several sizes of stones.The stones which can meet the requirements will be sent to the finished product material piles by the belt conveyor, while the left stones will be sent to the impact crusher for another further crushing to form a closed circuit cycle.



The finished product can be classified and combined according to the customers' needs. The dust removal equipment can be added in order to protect the environment.
