Stone crusher production line

Introduction:

Zhengzhou Taicheng Mining Machinery Co., Ltd. manufactures various equipments for whole set of stone production line, and provide complete technical support for customers. The whole production line consists of Vibrating Feeder, Jaw Crusher, Impact Crusher, vibrating screen, Belt Conveyor, electric control, etc.

Process:

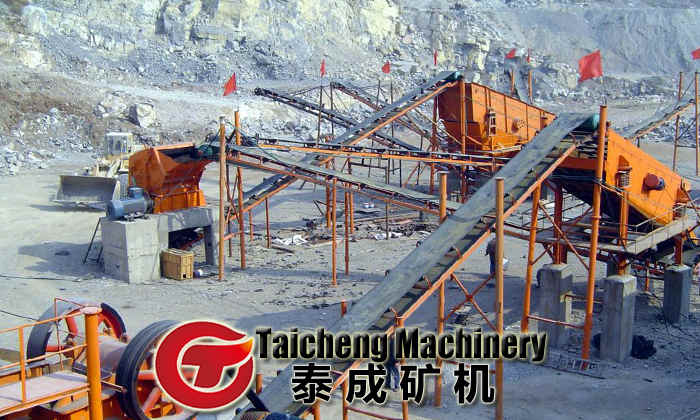

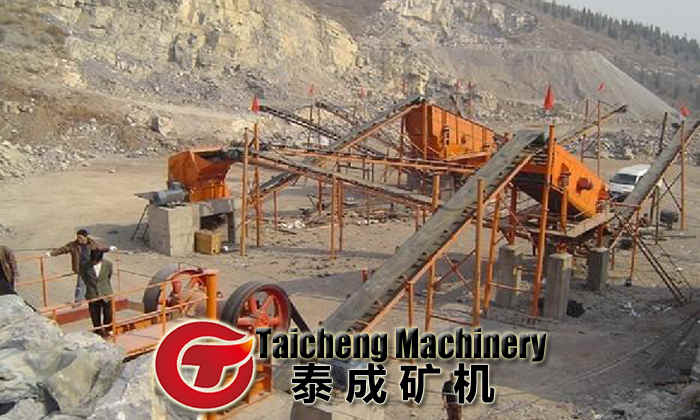

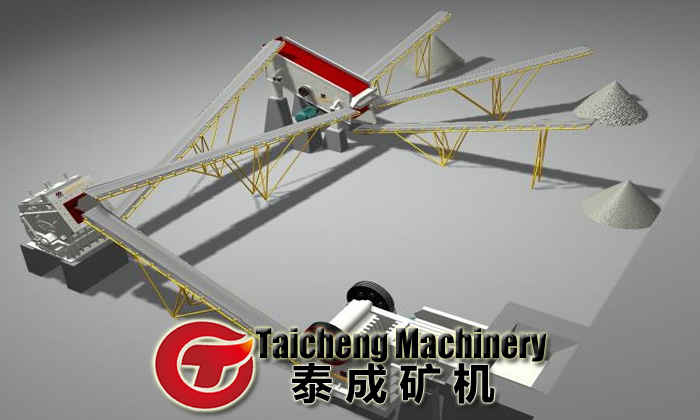

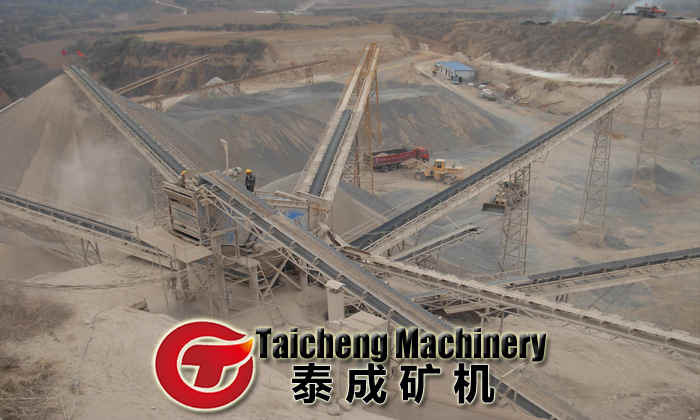

Big size stones are transferred to primary crusher through Vibrating Feeder from hopper for first crushing, then the crushed materials are transferred to Impact Crusher through Belt Conveyor for secondary crushing. The crushed materials will be transferred to the vibrating screen, and separated to different sizes.
Those aggregate with suitable size will be transferred to the final product pile and those with unsuitable size will be transferred to the Impact Crusher for re-crushing. This forms a closed circuit manifold cycles. The sizes of final products will be graded and separated according to customers' requirements, and the deduster will be attached for the sake of environment protection.

Advantages:

We design different production lines ranging 30 t/h to 800t/h by combining different models of equipments also matching Cone Crusher, deduster, etc.It is widely used for crushing hard limestone, granite, basalt, gravel, metallurgic slag, etc or artificial sand making for hydroelectric power, building material, high way, city construction, etc. Different models of equipments are combined to meet different customers' demands according to different craft requirements.

Technical Parameter:

Index	Max. Feeding Size(mm)	Output(t/h)	Main Equipment Type,Specification,Quantity
Feeding Equipment	Primary Crushing Equipment	Fine Crushing Equipment	Screening Equipment	Belt Conveyor(m)	Installed Power(kw)
1	340	30	GZD8030(3kw)	PE400×600(30kw)	PF1008(45kw)	2YK1235 (5.5kw)	60-90(20kw)	120
2	340	50	GZD8530(4.4kw)	PE400×600(30kw)	PF1008(45kw)	3YK1235(11kw)	100-130(30kw)	140
3	420	80	GZD9636(10kw)	PE500×750(55kw)	PF1010(75kw)	3YK1545(22kw)	130-160(30kw)	200
4	480	100	GZD9638(13kw)	PE600×900(75kw)	PF1210(130kw)	3YK1545(22kw)	140-180(40kw)	280
5	560	150	GZD1142(13kw)	PE750×1060(90kw)	PF1214(130kw)	3YK1854(22kw)	200-240(50kw)	300
6	630	200	GZD1142(13kw)	PE750×1060(110kw)	PF1315(140kw)	3YK1860(30kw)	200(40kw)	350
7	630	250	GZD1149(17kw)	PE750×1060(110kw)	PF1214/2(180kw)	3YK2160(30kw)	200(40kw)	400
8	630	300	GZD1249(17kw)	PE900×1200(110kw)	PF1315/2(180kw)	3YK2160(30kw)	250(50kw)	450
9	700	350	GZD1349(17kw)	PE1000×1200(132kw)	PF1315/2(250kw)	3YK2460(30kw)	250(50kw)	500
10	700	450	GZD1349(28kw)	PE1000×1200(132kw)	PF1315/2 PF1214(300kw)	3YK2160/2(60kw)	350(60kw)	600

Any change of technical data shall not be advised additionally.
