Coal dryer

Application:CoalCoal powder /Coal slime.

Capacity:0.5-300TPH


 Introduction

The water washing coal drying plant of Taicheng cmpany have exported to EU . With the CE certificate
If your coal moisture is 15-40% , Final moisture can meet your requirement .(5-20% ,as clients' requirement )Capacity : can 1-50t/h according to your moisture .

 Application

coal industry, dry the flotation clean coal, raw coal, coal slime, mixing clean coal, etc.

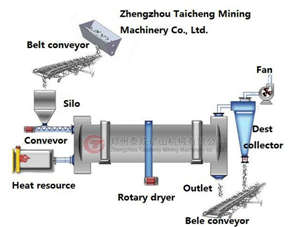

Working Principle

The raw material plate is arranged conveniently to allow adjustable angle positions. The material to be dried is inserted to the rotary cylinder through the raw material plate. Hot air flows within the cylinder causing the separation of water from the material by converting it into vapor which is discharged into the atmosphere. At this point, the material becomes dry.
Structure

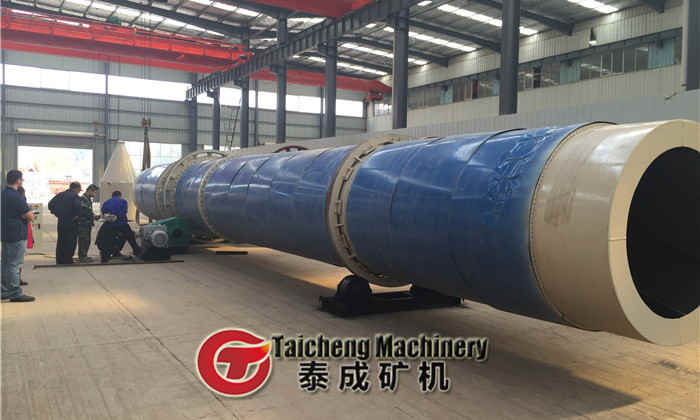

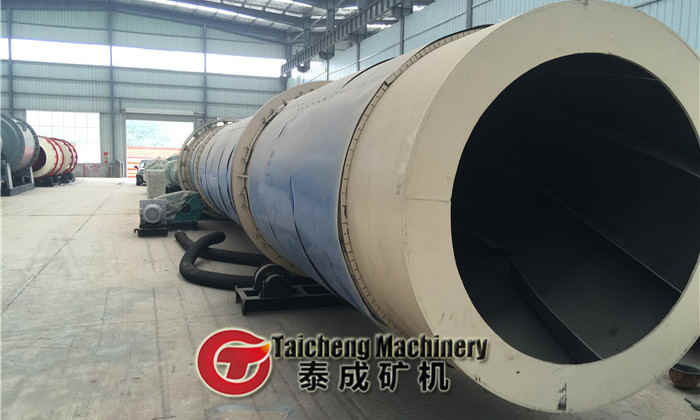

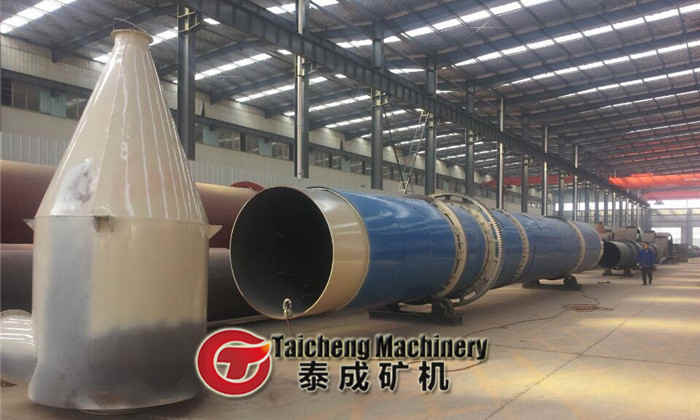

    The water washing coal drying plant is mainly composed by the revolving body, lifting plate, driving device, supporting device, sealing ring and other components. So it has the advantages of reasonable structure, perfect in workmanship, high yield, low energy consumption, convenient to operate.

Charcteristics  :

1. The internal adopts assembled structure which has improved the accuracy of the equipment and it is easy to transport and install.

2. According to the characteristics of different fertilizers ,we have arranged the second granulation zone reasonably so as to improve the granulation effect .

3. Adopts assembled hoist board so as to exchange heat fully and lower the energy consumption .

4. Temperature induction monitor ,uniform vibration and airproof setting , which improve performance and productivity efficiently .

5. The assorted combustion furnace is a type of energy efficient and has the characteristics of smaller area , easy regulation and equipped with greenhouse



Technical Parameter:




Model(mm) Tilt(%) Capacity
(t/h)
Rotate speed(r/min) The max. intake air temperature
(℃)
Main motor
(kw)
Weight
(t)
Φ600×600 3-5 0.5-1.5 3-8 700-800 3 2.9
Φ800×800 3-5 0.8-2.0 3-8 700-800 4 3.5
Φ800x10000 3-5 0.8-2.5 3-8 700-800 5.5 4
Φ1000x10000 3-5 1-3 3-8 700-800 7.5 8.5
Φ1200x10000 3-5 1.5-4 3-8 700-800 12.5 10.5
Φ1500x12000 3-5 3-6 3-8 700-800 15 14.5
Φ1500x15000 3-5 3.5-8 3-8 700-800 15 15.5
Φ1800x18000 3-5 6-15 3-8 700-800 22 33.5
Φ2200x12000 3-5 8-15 3-8 700-800 24 33
Φ2200x18000 3-5 10-18 3-8 700-800 24 38
Φ2200x20000 3-5 12-20 3-8 700-800 37 42
Φ2400x20000 3-5 18-30 3-8 700-800 37 49
Φ3000x20000 3-5 25-40 3-8 700-800 55 60
Φ3200x20000 3-5 32-40 3-8 700-800 75 73
Φ3600x20000 3-5 50-70 3-8 700-800 90 105



Any change of technical data shall not be advised additionally.
