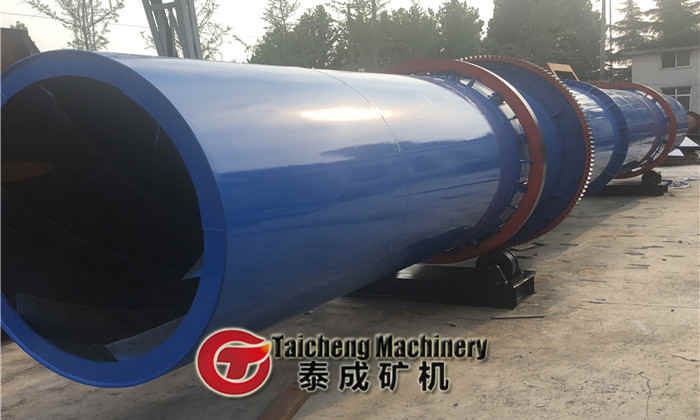

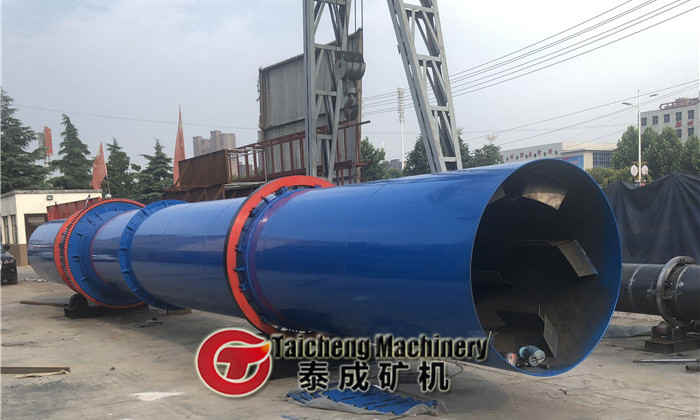

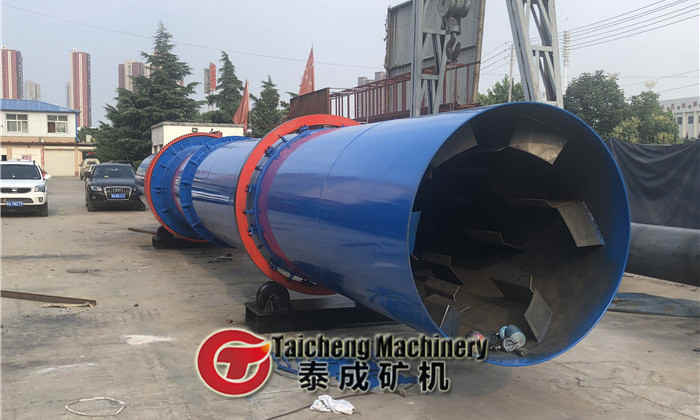

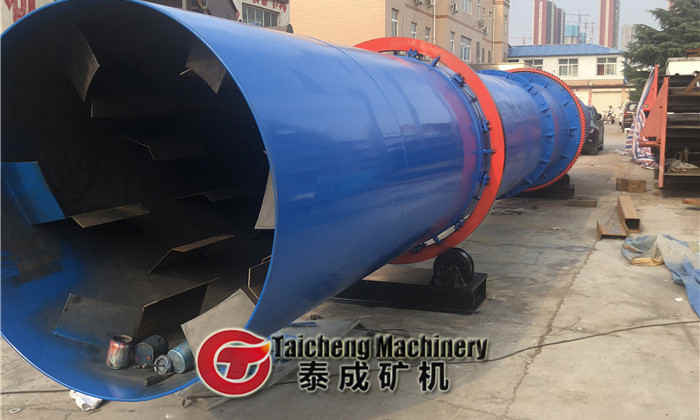

Sawdust Wood dryer

Application:Sawdust wood chips peanut shell rice husk biomass and so on.

Capacity:1-100TPH

Introduction
Taicheng company can provide a rotary drum dryer for just about any industrial drying application. We can provide triple pass or single pass drum dryer design with natural gas burners or one of our biomass fired sawdust burners. We have been installing dryers for more than 15 years and have the knowledge and experience required to provide a cost effective drying solution that not only works but works well.

Application
Used for drying the Sawdust, wood chips, peanut shell, rice husk,biomass and so on..

Structure

  wood sawdust drieris composed of hot stove, feeding port, rotating cylinder, filter cartridges, material conveying pipe, cooling tube and discharging port; rotating cylinder is located in the active roller, which takes low-speed rotation; the feeding port is set between heating furnaces and rotary cylinder, the rotating cylinder is equipped with a fry blade and the baffle has an orifice; one end of the filter cartridge is connected to the rotating cylinder and the other end is connected to material conveying pipe

Working Principle



wood sawdust drier is composed of hot stove, feeding port, rotating cylinder, filter cartridges, material conveying pipe, cooling tube and discharging port; rotating cylinder is located in the active roller, which takes low-speed rotation; the feeding port is set between heating furnaces and rotary cylinder, the rotating cylinder is equipped with a fry blade and the baffle has an orifice; one end of the filter cartridge is connected to the rotating cylinder and the other end is connected to material conveying pipe.


Technical Parameter:

Model(mm) Tilt(%) Capacity
(t/h)
Rotate speed(r/min) The max. intake air temperature
(℃)
Main motor
(kw)
Weight
(t)
Φ600×600 3-5 0.5-1.5 3-8 700-800 3 2.9
Φ800×800 3-5 0.8-2.0 3-8 700-800 4 3.5
Φ800x10000 3-5 0.8-2.5 3-8 700-800 5.5 4
Φ1000x10000 3-5 1-3 3-8 700-800 7.5 8.5
Φ1200x10000 3-5 1.5-4 3-8 700-800 12.5 10.5
Φ1500x12000 3-5 3-6 3-8 700-800 15 14.5
Φ1500x15000 3-5 3.5-8 3-8 700-800 15 15.5
Φ1800x18000 3-5 6-15 3-8 700-800 22 33.5
Φ2200x12000 3-5 8-15 3-8 700-800 24 33
Φ2200x18000 3-5 10-18 3-8 700-800 24 38
Φ2200x20000 3-5 12-20 3-8 700-800 37 42
Φ2400x20000 3-5 18-30 3-8 700-800 37 49
Φ3000x20000 3-5 25-40 3-8 700-800 55 60
Φ3200x20000 3-5 32-40 3-8 700-800 75 73
Φ3600x20000 3-5 50-70 3-8 700-800 90 105



Any change of technical data shall not be advised additionally.
