Water mist spray cannon machine dust removal equipment with range far, large covering area, ability is strong, the efficiency high, spray speed characteristics. It can effectively control work, building construction, dust pollution and improve air quality, preventing industrial pollution, to promote production safety, ensure worker health. It also play an important role in maintain the ecological environment .
Applications

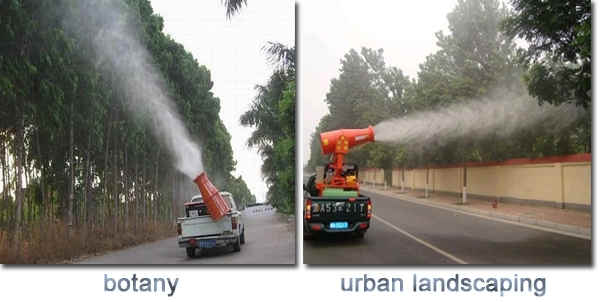

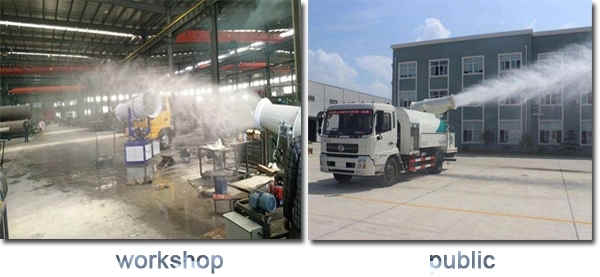

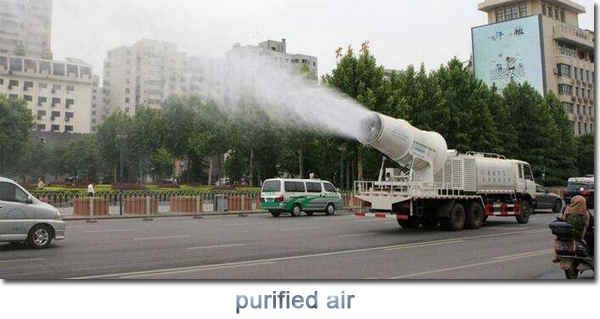

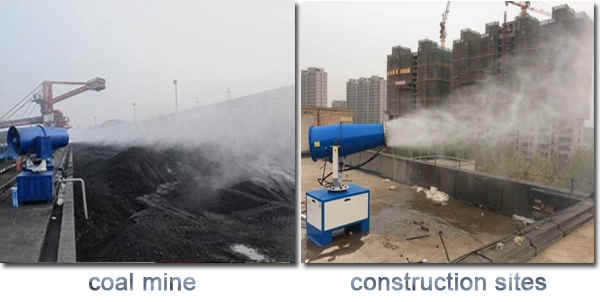

Specially used for urban development zone construction land, demolition site, station storage coal yard, coal washing plant, coking plant, iron ore plant, port and other blowing sand control. The main function is spray dust suppression, and the function of sprinkler and road flushing can effectively inhibit the production of dust.
Feature
1. Strong capability, high & far throw range, wide coverage area, high efficiency spray speed.
2. Micro fog droplet, form wet mist touching the floating dust, high speed knock down the dust.
3. Flexible power: three-phase 380V and diesel generator power supply optional.
4. Fixed on the concrete platform or diesel generator-powered vehicles optional.
5. Flexible, safe & reliable to use. Remove control & manual control operation.
6. Compare to tank car, water consumption save 70% ~80%, wide coverage area.
Technical Parameters
|
Model |
TC-30 |
TC-50 |
TC-80 |
TC-100 |
|
Horizontal spray rang |
20-30m |
40-50m |
70-80m |
90-100m |
|
Power(kw) |
7.5 |
15 |
18.5 |
37 |
|
Fog size |
20-200um |
20-200um |
20-200um |
20-200um |
|
Flow |
30-40L/min |
40-50L/min |
50-100L/min |
100-120L/min |
|
Pressure |
2-4Mpa |
2-4Mpa |
2-4Mpa |
2-4Mpa |
|
Horizontal angel |
0-360 |
0-360 |
0-360 |
0-360 |
Any change of technical data shall not be advised additionally.
