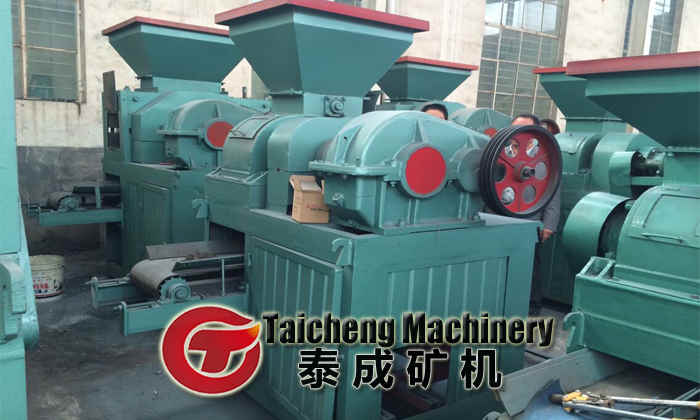

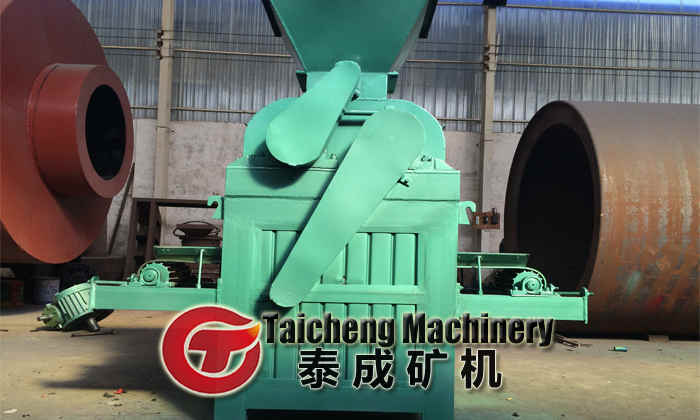

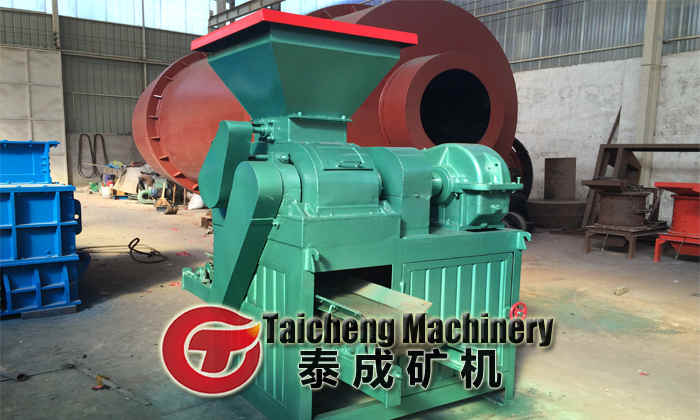

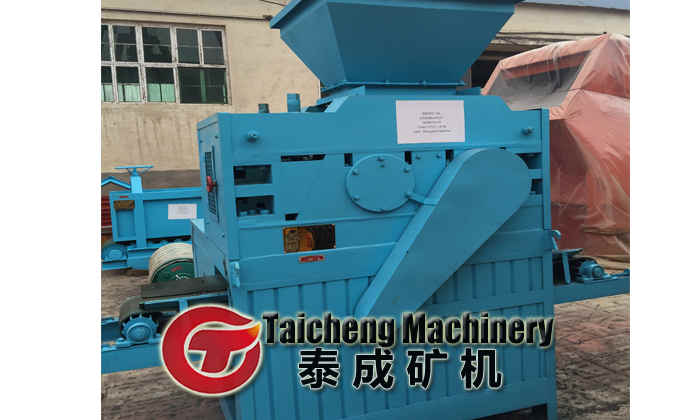

Ball Briquette Machine

Application:Coal; Cola powder; Ore powder; Gypsum...

Capacity:0.5-50TPH

Final Size:30-70mm

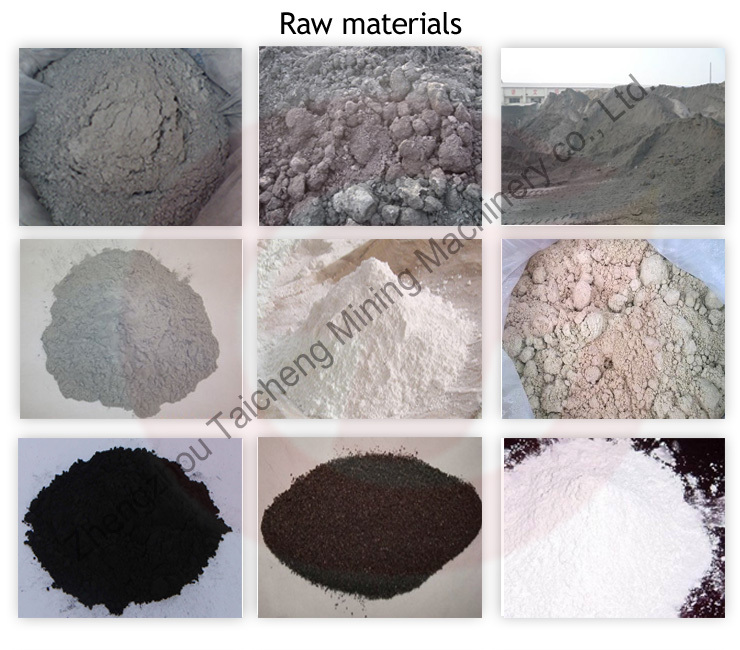

 Application materials:
1: Coal/coke/charcoal powder.
2: Metal powder: Iron powder, magnesium oxide powder, copper powder, chromium ore, lead, zinc scrap, bauxite,
nonferrous metal powder, silicon manganese alloy powder etc.
3. Mineral powder: aluminum powder, toner, gypsum, sludge, desulphurization gypsum powder etc
Working Priciple
This series of briquette machine will pass the power on to the two pressure roller
through the reducer.The two sides and roll rotation, in both the rotating roll,
Natural materials to enter the ball roll mode, with the roll rotation,
material pressure on a small become larger,
When the material to the two rollers rotating line contact point,
the pressure of materials has reached the peak. Tremendous pressure in the role of line,

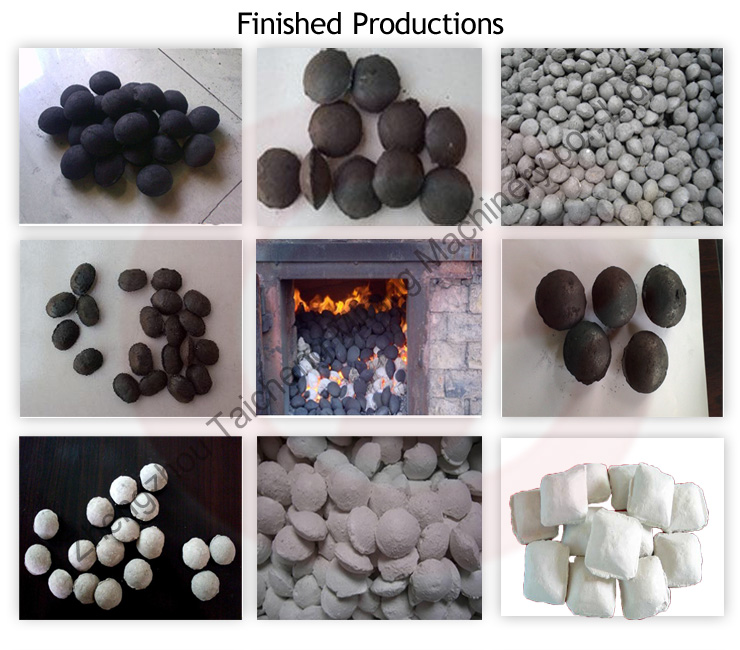

the materials become a finished product from the powder ball

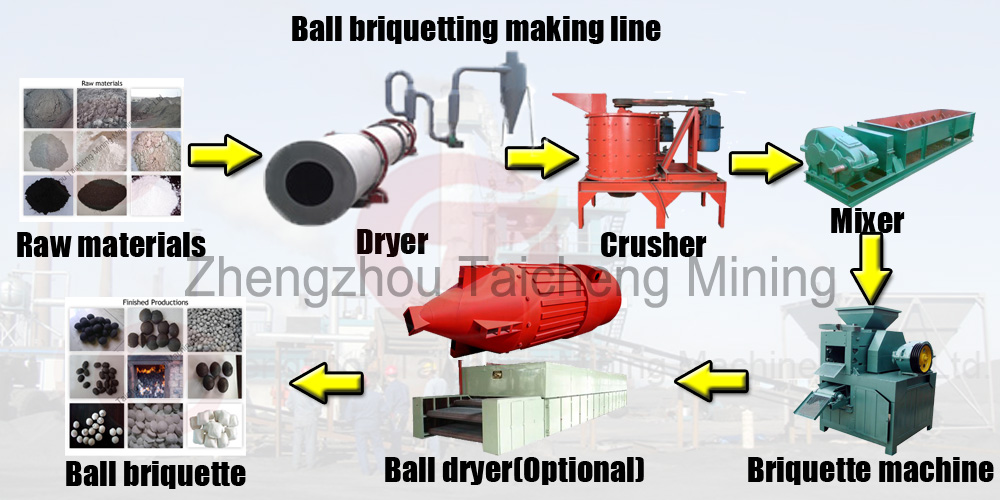

Production line
 a.Crusher is used for crushing raw material into smaller size(0-5mm)
b.Mixer is usde for mixing raw material and binder evenly
c.Briquetting machine is used for making coal briquettes
d.Dryer is used to dry coal briquettes
e.Coal Briquettes
This is normal procedure. We can specially design production line according to your raw materials
 Raw materials ---crushing---feeding---mixing---briquetting---drying---finished products

Technical Parameters
Model Capcity(t/h) Power(kw) Roller Diameter(mm)
TCBM-290 1-2 5.5 290
TCBM-360 2-4 7.5 360
TCBM-400 4-8 11-15 400-420
TCBM-500 7-11 18.5-22 500-520
TCBM-650 10-15 22-37 650-680
TCBM-750 15-20 45 750-780
TCBM-850 25-35 75 850
TCBM-1000 40-50 132 1000

Any change of technical data shall not be advised additionally.
