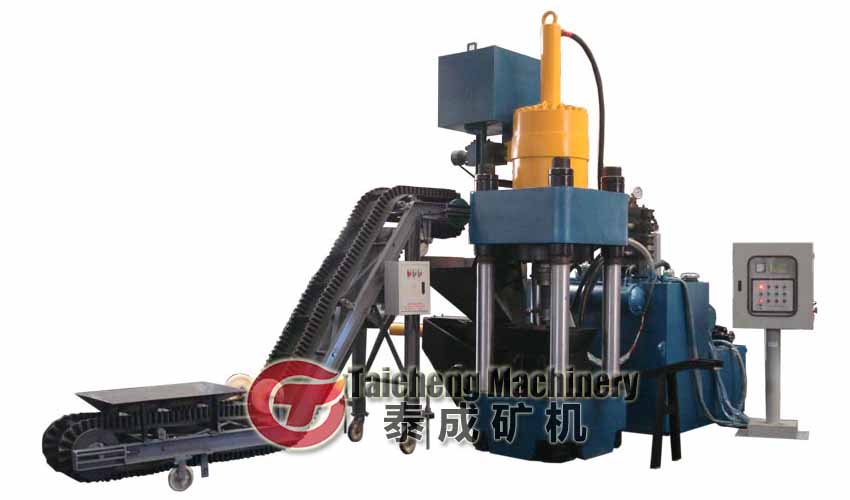

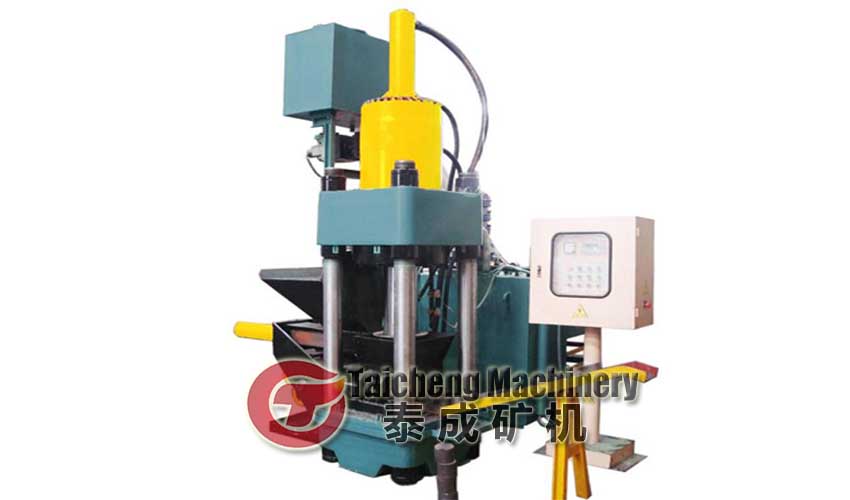

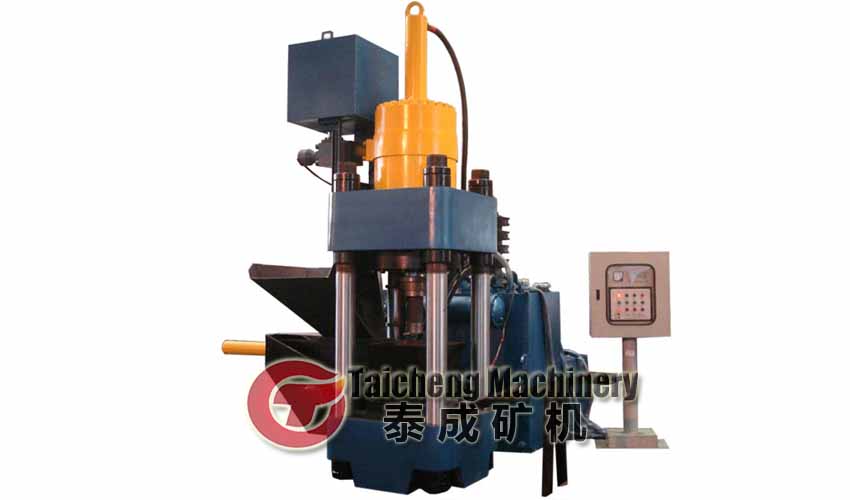

This is a complete and automatic briquetting production line for making briquettes, All machines of this briquetting production line are our new type with high efficiency. Compared with old type, the new type machines are upgraded in many aspects, including the electric motor, moulds, hydraulic pressure system, electric control system, etc.
Press Material:

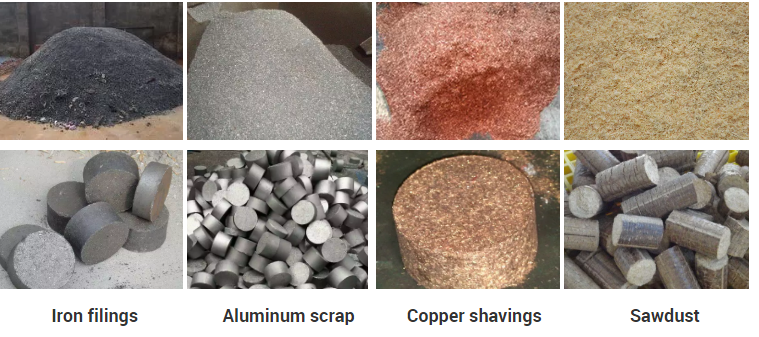

Cast iron, aluminum, copper, steel, brass, zinc, bronze,titanium and magnesium, they are also suitable for treating a variety of other machining scraps.
Advantages
1.The high pressure reached in the compression chamber allows creating high density briquettes.
2.Besides drastically reducing the volume of the machining chips, remove cutting fluids and create briquettes that.
3.In most cases,Briquettes can be placed directly in smelting furnaces.
4.This results in substantial economic benefits for companies that generate the scraps, companies that recycle metal scraps, and for foundries that process the scraps.
5.There are a large number of environmental benefits resulting from the briquetting process.
Technical parameter
|
Model |
Nomal pressure
|
Block size
|
Power(Kw)
|
Capacity(pieces/min)
|
|
TCPS-200 |
2000KN |
Φ80-100mm |
11 |
4-5 |
|
TCPS-300 |
3000KN |
Φ100-130mm |
15-22 |
4-5 |
|
TCPS-400 |
4000KN |
Φ110-150mm |
22-30 |
4-5 |
|
TCPS-500 |
5000KN |
Φ120-160mm |
30 |
4-5 |
|
TCPS-630 |
6300KN |
Φ130-200mm |
30-37 |
4-5 |
|
TCPS-800 |
8000KN |
Φ150-240mm |
67 |
4-5 |
|
TCPS-1000 |
10000KN |
Φ200-340mm |
90 |
4-5 |
