Sawdust briquette machine

Raw material: charcoal sawdust , biomass , wood chips and other

biomass briquette machine is the most popular briquette machine all over the world. It is not only can recycle sawdust, wood pieces, wood wastes, wood shavings from timber mill and make full use of these wastes, but also can recycle coffee husk, bark, tree branches, leaves, rice husk, wheat husk, straw, sugarcane Bagasse, coconut shell, palm shell, walnut shell, peanut,shell, dry grass, etc. any kinds of agriculture wastes into biomass briquettes.
Finished product
The final bio-fuel briquette is made by the advanced biomass briquetting machine.  After the processing of drying, compressing under the high pressure and temperature, the biomass briquette is characterized by high density, small in size, better combustion, capable as the substitute for the superior coal or firewood. This bio-fuel briquette is 50, 60, 70, 80, etc, several different types., occurs in the hollow quadrangular or hexagonal cylinde or hollow hexagonal with a 15-20mm hole through the body. The bio-fuel carbon maintains the cleanliness and hygiene, and is suitable for family heating and barbecuing. There is a huge need in the international market, for it is capable as the substitute for the superior coal or heavy oil to the Industrial steam boiler, or the industrial raw material for the further processing into the activated carbon, mosquito coils and explosives . After carbonization, the charcoal briquettes calorific value is 5000-7500 kilocalories.

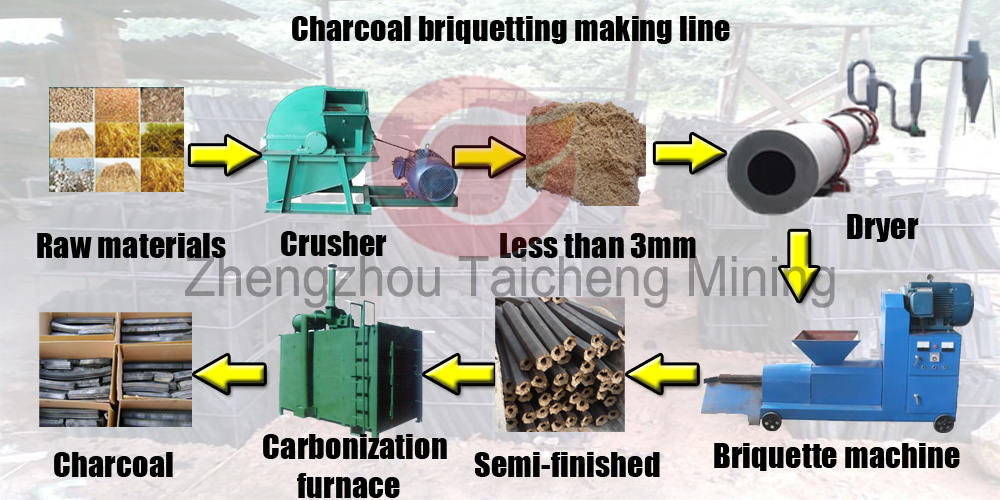

Production Line Equipments for biomass briquette machine:
We can not only provide the briquette machine, but also the whole production line equipments such as:
Crusher (crusher the raw material into powdery material which less than 3m) →
Dryer (drying the powdery material so that the moisture less than 12%) →
Briquette Machine (making briquettes from biomass powdery material) →
1. Automatic constant temperature system. After setting the temperature, our machine can work steadily.
2. Reasonable design, realiable quality, simple structure, energy saving, environmental protect, easy operation, convenient maintain.
3. Automatic electric heating device, which can adjust the moisture of feeding materials, ensure the stable discharging, improving working efficiency.
4. The main parts of our machine adopt wear-resistant materials, prolong the service life than the old type.
5. The briquettes shape and size can be adjusted by yourself, you can also carbonize them into charcoal briquettes, which are flammable and with high calarific value.
6. Reforming the oil-injected type to oil-immersed type. As long as no shortage of oil, the machine can continuously working for long time without stopping.
7. Improve the structure of forming barrel, reduce the friction between material and machine, so increase the density and hardness of outlet briquettes, at the same time greatly increase the production capacity.
Technical Parameters



Motor power
Final Briquette Diameter (mm)
CB40 120-150 11 50-80mm 1660*745*1250
CB50 150-200 15 50-80mm 1700*800*1280
CB60 200-300 18.5 50-80mm 1920*800*1550
CB70 300-350 22 50-80mm 2000*800*1600
CB80 350-400 30 50-80mm 2100*900*1700

Any change of technical data shall not be advised additionally.
